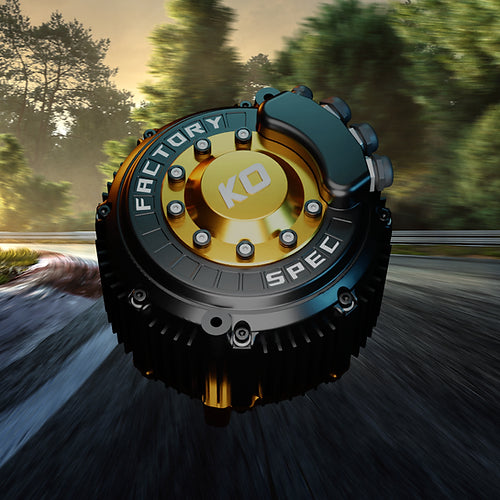

KO Technologies Factory Spec special edition motor
The Factory spec features a higher KV wind, Magnets imported from Europe and a unique colour set with laser etching and ultra high quality finish.
MOTOR CASING FEATURES
DIRECT DROP IN REPLACEMENT FOR TALARIA.
MOTORWEIGHT (INCLUDING WIRES) - 10KG,
MOTORCYCLE GRADE ANODIZED FINISH FOR MAXIMUM DURABILITY AND HEAT DISPERSION (NOT POWDER COATED).
7075 AIRCRAFT GRADE BILLET MACHINED END CAPS AND SENSOR CAP.
STAINLESS STEEL WATER PROOF PHASE AND SENSOR WIRE GLANDS.
INTERNAL MOTOR FEATURES
INTERNAL MAGNET MOTOR (IPM) KO DESIGNED MANUFACTURED ROTOR / STATOR.
STATOR DIMENSIONS - 160mm X 53mm.
WORKING VOLTAGE - 48V-100V.
COLD ROLLED SAE 1045 STEEL SHAFT
CUSTOM KO DESIGNED AND PATENTED ROTOR AND HEAT SINK DESIGN ALLOWS HEATSOAK DISSIPATION ON THE ENDS OF THE STATOR.
KO DESIGNED AND PATENTED INTERNALS PRESSURE EQUALIZATION SYSTEM COMPATIBLE.
KO DESIGNED AND PATENTED CRYO COLD AIR INJECTION SYSTEM COMPATIBLE.
KO DESIGNED AND MANUFACTURED CRYO ROTOR/ STATOR ANTI CORROSION COATING.
INDUSTRY LEADING SKF BEARING AND SEALS (OR EQUIVALENT) FOR THE LOWEST ROLLING RESISTANCE AND EFFICIENCY.
JAPANESE SOURCED 0.35 NIPPON STEEL STATOR / ROTOR LAMINATED.
INDUSTRY LEADING 1.5mm AIR GAP.
INDUSTRY LEADING 150°C / 302F SH50 NEO MAGNETS.
HAND WOUND 220°C HIGH TEMP COPPER WINDINGS.
CUSTOM WATERPROOF DESIGNED (IP69) AND MANUFACTURED HALL SENSOR WITH 12 MONTH REPLACEMENT WARRANTY AGAINST WATER / MOISTURE DAMAGE.
MOTOR OPERATING SPECIFICATION
POWER - 35KW (BASED ON THE MOTOR RATING, YOUR BATTERY WILL DETERMINE THE POWER PRODUCED BY THE MOTOR)
MAX TORQUE @60V - 55NM
MAX STABLE ROTOR RPM - 12,000RPM
MAX EFFICIENCY 97%
USD : 92.69
